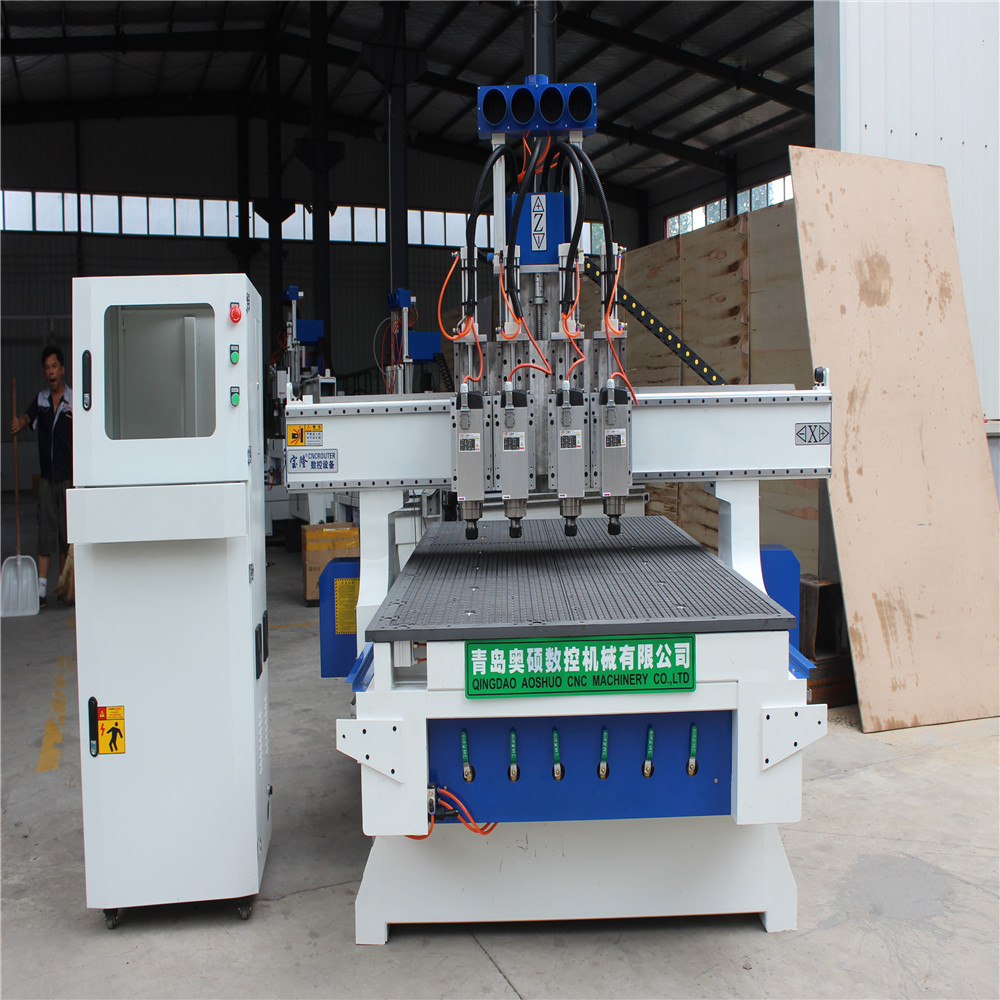

Four heads CNC Router Machine
four heads nesting cnc cutting machine is an economical panel furniture production equipment.
This model is a CNC cutting machine specially customized according to the required hole size of the panel furniture three-in-one link and sawdust.
The machine head It is equipped with four spindles, and the tools loaded on the spindles are 6mm, 8mm, 10mm, and 15mm when processing cabinets.
Processing:
1 Cutting:It can cut various non-metallic materials with different thicknesses.
2 Drilling:The four spindles are pneumatically switched to solve the required hole position when drilling,can drilling different size holes.
3 Grooving:Can be grooved on both sides,the head of the machine is equipped with four spindles,and the tools loaded on the spindle are 6mm,8mm,10mm,15mm when processing the cabinet.which can process three-in-one holes, two-in-one holes and milling .invisible grooves, U-shaped lock grooves, and wooden shovel grooves with high efficiency.
4 Milling:can milling of different shapes for different kinds of plates
5 Engraving/carving:Can carry out three-dimensional plane carving on solid wood board and high-density fiberboard.
6 Hollow cutting:The milling cutter can be used to complete a beautiful hollowing effect on a variety of materials.
|
Single table travel range
|
1220*2440mm
|
|
Travelling speed
|
60m/min
|
|
Max working speed
|
18m/min
|
|
Turnover processing accuracy
|
±0.05mm
|
|
Transmission
|
X/Y axis gear rack,Z axis ball screw
|
|
Spindle parameter
|
6KW*2+4.5KW*2 air cooled 18000RPM
|
|
Operation system
|
SYNTEC/DELTA
|
|
Table structure
|
Double layer multizone porous vacuum table
|
|
Working voltage
|
380V/50HZ
|
|
Dimension
|
3.7*2.1*2.3m(LWH)
|
|
Machine net power
|
11KW
|
|
Operation power of whole machine
|
21.5KW
|
