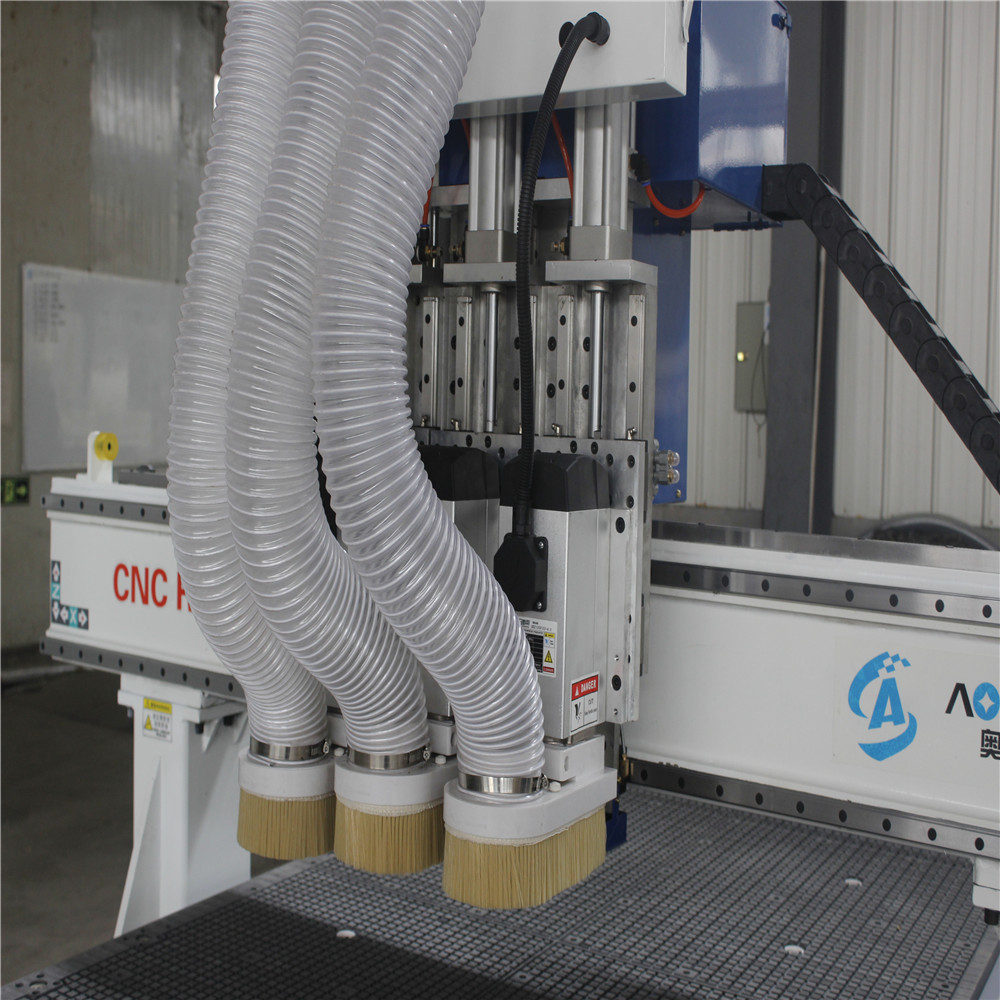

Three Spindles CNC Router Machine
The machine body is strong, rigid, high precision, reliable and durable.
Imported high-precision ball screw gap, smooth movement, to ensure that the machine tools high-precision Using well-known domestic brands of water-cooled brushless spindle, low noise, strong cutting ability, to ensure the long time working.
Good three-axis and dust-proof structure to ensure that the machines longer service life.
Designer perfectly, select the best machine accessories , to minimize the failure rate preferred.
Breakpoint specific memory, power outages continued carving, processing time forecast, and other functions to ensure that accidental processing .
Compatility, compatible Type3/ Artcam / Castmate / Wentai, and so on a variety of CAD/CAM design software.
Application:
This type is process centre machine, equipped with 2-3 kinds of cutters, there is no need to change the cutters when engraving or cutting.
The program can work automatically, the advantage is low investment, high profit, low matainance, easy to operate. It’s also easy for new user to operate.
1. Furniture: wooden doors, cabinets. Plate, office and wood furniture, tables, chair, doors and windows.
2. The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
Parameters:
|
Model |
3 Axis Wood 1325 CNC Router |
|
X,Y Axises Working Area |
1300 * 2500mm |
|
Z Axis Working Area |
200mm |
|
Table Size |
1340*3040mm |
|
Table Material |
Vacuum Adsorption(Six Zones) |
|
Lathe Bed |
Heavy Duty Lathe Bed |
|
Max Traveling Speed |
20m/min |
|
Max Working Speed |
8m/min |
|
Max Feed Height |
200mm |
|
Working Accuracy |
0.2mm |
|
Repositioning Accuracy |
0.05mm |
|
Blade Diameter |
3.175 / 4 / 6 / 8 / 10 / 12.7mm |
|
Command |
G Code / u00 / mmg / plt |
|
Surrounding for Software |
windows98 / 2000 / xp |
|
Motor(without spindle) |
550w |
|
Working Voltage |
380V/220v |
|
Spindle |
Changsheng Spindle |
|
Spindle Motor |
6.0kw*3 |
|
Spindle Rotating Speed |
0-18000rpm/min |
|
Driver |
Leisai Driver |
|
Frequency Changer |
Beishide |
|
Driver Motor |
Servo Motor |
|
Drive System |
X,Y Axises High Precision Helical Rack, Z Axis 2510 Lead Screw Drive |
|
Guide Rail |
High Precision Linear Guide Rail |
|
Control Cabinet |
Computer Cabinet |
