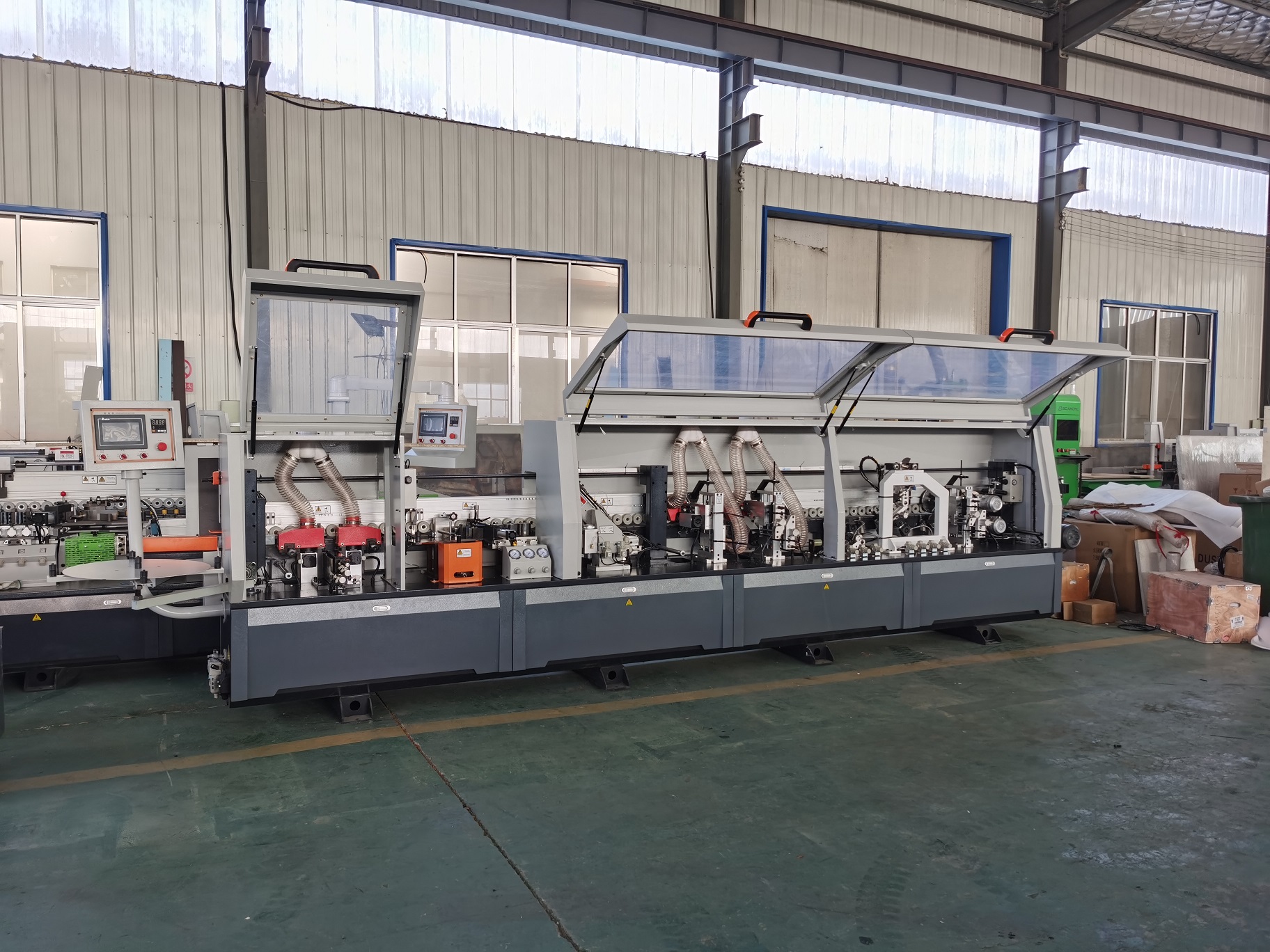

Automatic Edge Banding Machine
Overall dimensions:7900*910*1540mm
Min Panel Side 300(L)*60(W) 150(L)*150(W)
Feed speed 15-23m/min
Edge thickness 0.2-3mm
Panel Thickness 10-60mm
Panel Length ≥150mm
Panel Width ≥60mm
Working Air Pressure 0.6Mpa
Weight 2950kg
Total Power 24.1kw
1.Automatic adjustment function: according to the thickness of the plate, automatic adjustment of beam height, automatic positioning
2.glue pot: different glue can be selected according to different colors of plates or side tape
3. Profile tracking function rounds the four corners, making them more smooth and safer.
4.Function customization: Pre-milling, Gluing, End trimming, finishing, track trimming, scraping, Polish, etc
5.malfunction self-inspection
Product Parameter
|
Model |
AS450P |
|
Panel thickness |
10-60mm |
|
Edge thickness |
0.4-3mm |
|
Panel length |
>=150mm |
|
Panel width |
>=40mm |
|
Working Pressure |
0.8Mpa |
|
Feeding Speed |
12-20m/min |
|
Electrical Lift |
yes |
|
Motor Power |
14.5kw |
|
Weight |
2200kg |
|
Overall dimensions |
5700*1100*1600mm |
Engaged in prodcution and sell woodworking machinery
